Push-back Racking (LIFO)

Push-back Racking (LIFO)

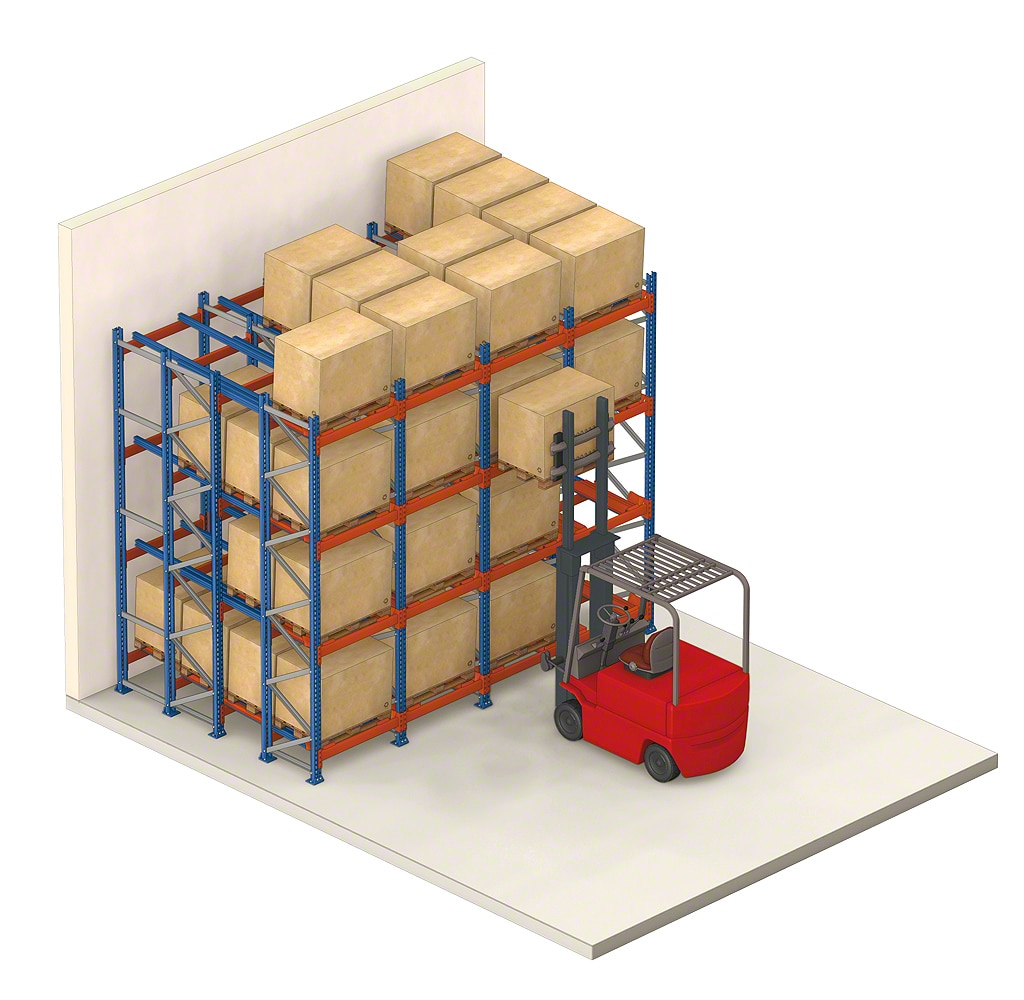

A high density, space-saving accumulative gravity storage system.

Loading and unloading is completed from the same aisle (LIFO system) with capacity for up to four pallets per level. Handling time is reduced and storage capacity increased.

Push-back pallet racking

dec4dc63-ea4d-36fb-5450-461af29f2075

Push-back pallet racking

d4965250-fbdf-8320-a726-2705f1114087

Push-back pallet racking

f3360541-c251-41cf-f651-35c521212599

Push-back pallet racking

82e6bea6-5f9f-f842-5f7a-4bc8cf847b18

Push-back pallet racking

0e8adf0f-2658-66d5-b482-d5bfd83760ed

Push-back pallet racking

3d64679e-b8f7-887e-7608-109d93dfb96f

Push-back pallet racking

40114f3f-6d7e-6d12-7f36-8d5325003f17

Push-back pallet racking

81538176-3f40-a037-c632-4167e74116b0

Push-back pallet racking

14bdeb49-103f-a3fc-793b-950bc64c8442

Push-back pallet racking

20fb7544-4b8e-cc90-c508-00771b44f283

Push-back pallet racking

4873a3a1-f547-4e0d-677c-f37816ddc70f

Push-back pallet racking

ae32464c-7ecc-0fa3-1ac7-7377e0012cbd

Main Features of Push-back Racking

An accumulative storage system that can hold up to four pallets deep per level. Pallets are placed on the trolley inside the sloped storage lane. The incline of the push-back structure automatically sends pallets from the rear to the front of the lane when the pallet closest the aisle is removed.

Push-back pallet racking is ideal for storing medium-turnover products (with two or more pallets per SKU), through the Last In First Out (LIFO) load method. Access to the stored goods is carried out from a single work aisle.



Advantages

  • Best space purposing of available space
  • Time savings in slotting and extraction operations
  • Very little vertical space is wasted
  • Each level can store a different SKU



Another variation of the push-back system has roller channels. It operates quite similarly, but uses rollers instead of rails and trolleys.
